            Back to products

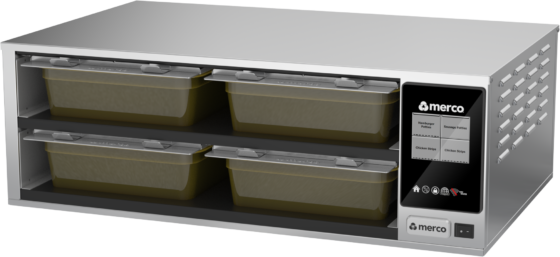

            MHV24SST1W
            MHV24SST1W
            MHD42SSL1T
            Layout
            Tray

            mercoEco®

            Specialty Products

            The mercoEco visual holding cabinet is a hot-holding solution designed to handle both crispy and juicy items with ease. Featuring radiant heat above and below each tray, these models ensure even, moisture-balanced warming without sacrificing texture. Compatible with industry full size, 4” deep, high-heat trays and available in multiple configurations with single- or double-sided access, the MercoEco is ideal for high-performance, space conscious kitchens.

            Key FEATURES

            Radiant Heat (Top and Bottom)
            Maintains consistent, gentle heat ideal for preserving both crispy and juicy food textures.

            7" Touchscreen Interface
            Visual status indicators, swipe navigation, and easy programming via USB or Wi-Fi with KitchenConnect®.

            Flexible Tray Seals
            Removable stainless-steel tray seals lock in moisture when needed or can be removed to preserve crispiness.

            Modular, Pass-Thru Ready
            Durable stainless steel construction with single or double-sided configurations and removable back panel for pass-thru use.

            Full Size, Deep Tray Compatibility
            Designed to hold full size, 2.5" or 4" deep high-heat trays (sold separately).

            Features
            Standard Features
            • Wireless connectivity with KitchenConnect® for remote monitoring and recipe uploads
            • Multiple language options and customizable food names
            • Radiant heat above and below each tray zone for consistent temperature control
            • Adjustable temperature per zone (90–225 °F / 32–107 °C)
            • Visual hold indicators and audible alerts for precise food management
            • Compatible with removable stainless steel tray seals to customize moisture retention
            • Wi-Fi enabled for smart kitchen integration and data access
            • Heavy-duty stainless steel body built for commercial durability
            • Pass-thru ready with removable back panel
            • Compatible with full size, 4” deep high-heat trays(trays not included)
            • (1W) suffix indicates a single touchscreen UI and a finished back
            • (2W) suffix indicates a touchscreen on both sides, no back for dual service
            • Includes 6-ft. power cord
            Optional Features
            • Full size, 4" deep single or double handle plastic trays (MHV models)
            • Full size, 2.5" deep single or double handle plastic trays (MHD models)
            • 1/3 size solid tray seal
            • 1/3 size vented tray seal
            • Stainless steel trivets
            Dimensions
            Width
            16.2" (41.1 cm) - 34.8" (88.3 cm)
            Depth
            22.6" (57.4 cm)
            Height
            11.6" (29.5 cm) - 32" (81.3 cm)
            Shipping Weight
            50-lbs. (22.7 kg) - 238-lbs. (108.1 kg)
            Power Requirements
            Domestic
            Volts
            120V | 208/240 V
            Amps
            5 A - 16 A
            Watts
            600 W - 3840 W
            Hertz
            60 Hz
            Export
            Volts
            200V - 240V
            Amps
            2.3 A - 16 A
            Watts
            454 W - 3840 W
            Hertz
            50/60 Hz
            Certifications
            • CE
            • UL Listed
            • Classified UL EPH
            Specifications provided above are a range, please refer to the specification sheet for precise information.

            Resources
