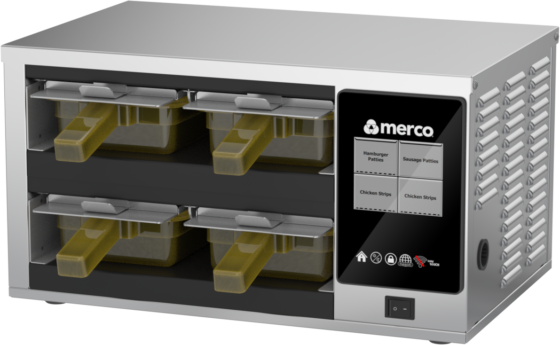

            MHG22SST1W
            MHG22SST1W
            MHT22SST1W
            MHG23SST1W
            MHG24SST1W
            MHL24SST1W
            MHG34SST1W
            MHG32SST1W
            MHT32SST1W
            Controller
            Layout
            Tray

            mercoEco®

            The mercoEco visual holding cabinet is a hot-holding solution designed to handle both crispy and juicy items with ease. Featuring radiant heat above and below each tray, these models ensure even, moisture-balanced warming without sacrificing texture. Compatible with industry standard 1/3 size, 2.5” or 4" deep, high-heat trays and available in multiple configurations with single or double-sided access, the mercoEco is ideal for high-performance, space conscious kitchens.

            Key FEATURES

            Radiant Heat (Top & Bottom)
            Maintains consistent, gentle heat ideal for preserving both crispy and juicy food textures.


            7” Touchscreen Interface
            Visual status indicators, swipe navigation, and easy programming via USB or Wi-Fi with KitchenConnect®.


            Flexible Tray Seals
            Removable stainless-steel tray seals lock in moisture when needed or can be removed to preserve crispiness.


            Modular, Pass-Thru Ready
            Durable stainless-steel construction with single- or double-sided configurations and removable back panel for pass-thru use


            Features
            Standard Features
            • Visual hold indicators and audible alerts for precise food management
            • Compatible with removable stainless steel tray seals to customize moisture retention
            • Wi-Fi enabled for smart kitchen integration and data access
            • Heavy-duty stainless steel body built for commercial durability
            • Pass-thru ready with removable back panel
            • Compatible with 1/3-size, 4” deep high-heat trays (trays not included)
            • (1W) suffix indicates a single touchscreen UI and a finished back
            • (2W) suffix indicates a touchscreen on both sides, no back for dual service
            • Includes 6-ft. power cord
            Optional Features
            • 1/3 size, 2.5" deep single handle plastic trays
            • 1/3 size, 4" deep single handle plastic trays (MHT models)
            • 1/3 size solid tray seal
            • 1/3 size vented tray seal
            • Stainless steel trivets
            Dimensions
            Width
            16.2 " (41.1 cm) - 37.8" (96 cm)
            Depth
            14.7" (37.3 cm)
            Height
            11" (27.9 cm) - 27.4" (69.6 cm)
            Shipping Weight
            66-lbs. (30 kg) - 156-lbs. (70.8 kg)
            Power Requirements
            Domestic
            Volts
            1V - 10V
            Amps
            1 A - 10 A
            Watts
            1 W - 10 W
            Hertz
            1 Hz - 10 Hz
            Export
            Volts
            120V or 208 | 240V
            Amps
            6.7 A - 13.4 A
            Watts
            800 W - 2614 W
            Hertz
            60 Hz
            Certifications
            • CE
            • UL Listed
            • Classified UL EPH
            Specifications provided above are a range, please refer to the specification sheet for precise information.
